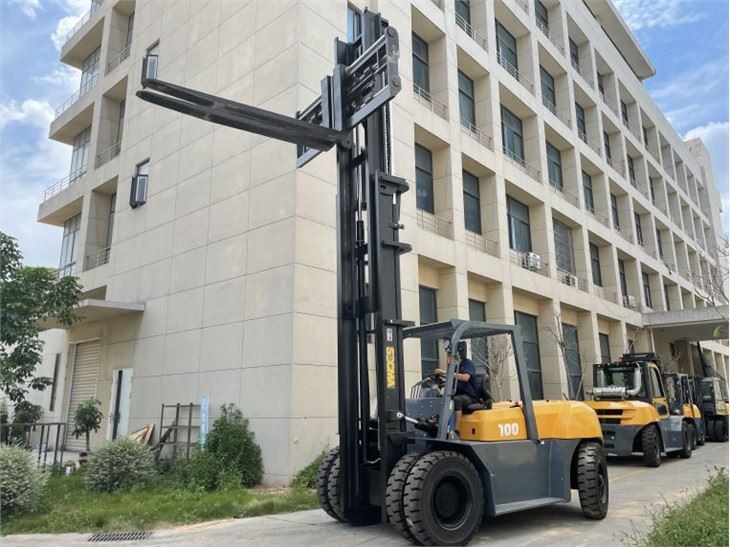

10 Ton Żgħar Forklift Truck SOCMA Magni Ċiniżi L-istess Bħal JCB HELI

Forklift heavy duty ta '10 tunnellati
magna li timmaniġġja l-materjal
Magna Chaochai/Isuzu

Ibgħat l-inkjesta

Introduzzjoni tal-Prodott

Manifattur	Mudell		Unità	CPCD100
	Konfigurazzjoni tal-vettura			HNF-100
speċifikazzjoni	Load capacity		t	10
	Ċentru tat-tagħbija		mm	600
	Unità tal-qawwa			Diżil
	Tip ta' operatur			Sewwieq/sedil
	Tip tajer			Pnewmatiċi
	roti			42
Dimensjonijiet	Max. lifting height		mm	3000
	Lift b'xejn		mm	205
	Daqs tal-furketta		mm	122017575
	Angolu tal-inklinazzjoni		grad	6/12
	Tul totali (mingħajr furketta)		mm	4255
	Wisa' totali		mm	2245
	Għoli tal-arblu (li tbaxxi l-furketta)		mm	2850
	Furketta tal-għoli ġenerali mgħollija		mm	4330
	Għoli tal-gwardja tar-ras		mm	2560
	Raġġ tat-tidwir (barra)		mm	3900
	Distanza tat-tagħbija		mm	710
	Angolu rett stivar imwarrba (pallet size:11001100 add distance)		mm	6250
Prestazzjoni	Veloċità	Travelling (Full/ No load)	km/h	24/30
		Irfigħ (Sħiħ/ Bla tagħbija)	km/h	390/410
		Tbaxxija (Sħiħ/ Bla tagħbija)	mm/s	470/340
	Max. drawbar pull		kg	5800/3200
	Gradeability f'1.6km/h		fil-mija	22
	Max. gradabilità		fil-mija	24/20
Piżijiet	Piż		kg	12450
	Distribuzzjoni tal-piż	Full( Front/rear)	kg	20160/2290
		Ebda tagħbija (Quddiem/wara)	kg	5480/6970
Chassis Wheels	Tajers	Number (Front/rear)		4/2
		Daqs (Quddiem/wara)		9.0020-14PR
				9.0020-14PR
	Base tar-roti		mm	2800
	Tread	Quddiem	mm	1600
		Wara		1700
	Distanza mill-art	At lowest point (mast)	mm	245
		Qafas		320
	Ibbrejkjar	Service brake		Power brake
		Brejk tal-pakkjar		Mechanical-hand lever
Linja tas-sewqan	Batterija	Vultaġġ/kapaċità	V/AH	212V-80AH
	Magna	Mudell		ISUZZU	Chaochai
		Qawwa nominali	KW/rmp	82.3/2000	80.8/2500
		Torque nominali	N-m/rmp	418/1500	354/1650
		Numru ta' ċilindri		6	6
		Spostament	L	6.494	5.785
	Kapaċità tat-tank tal-karburant		L	140
	Trażmissjoni			2/2-power shift T/M
	Pressjoni operattiva		Kg/ċm²	200
